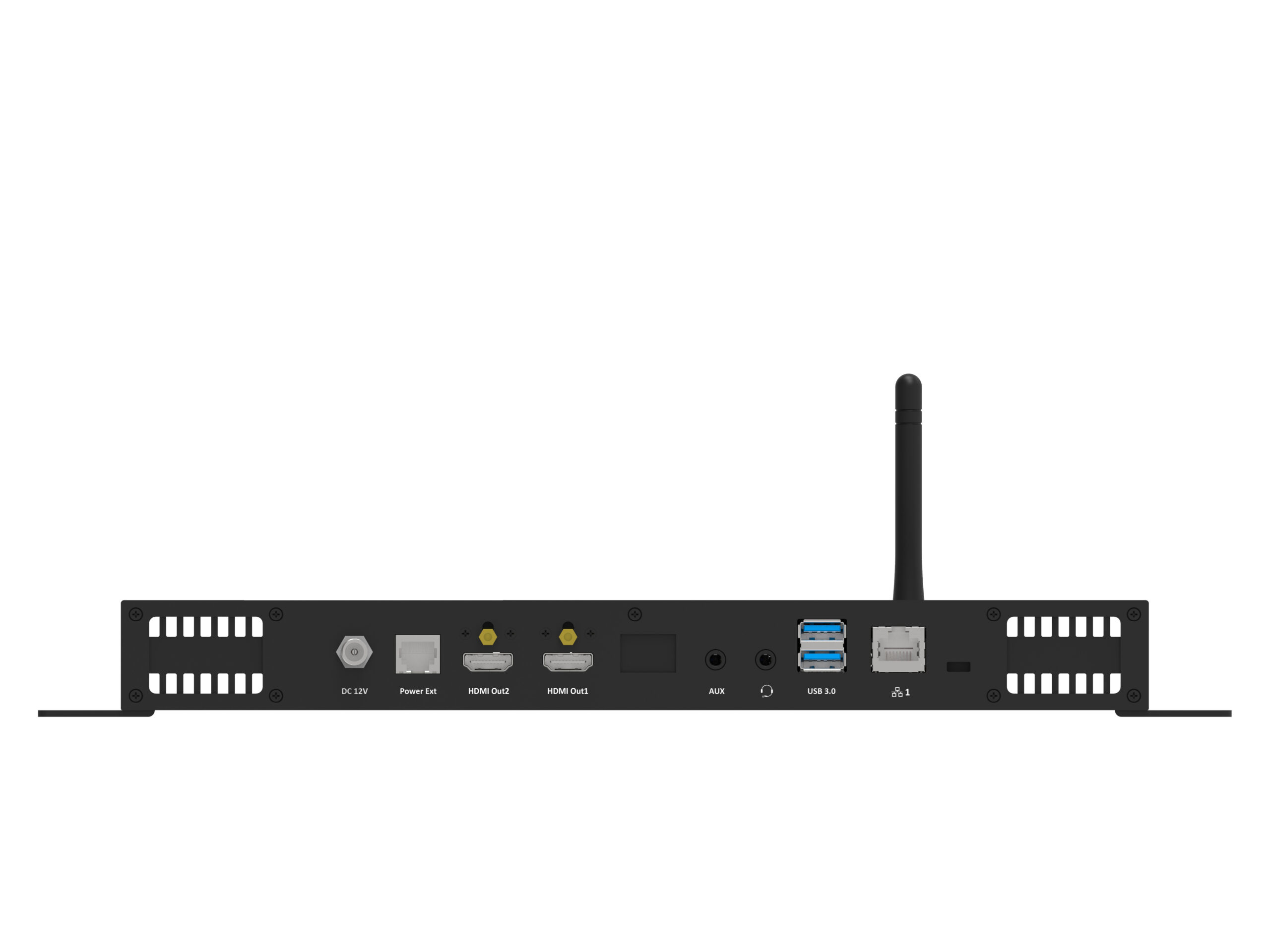

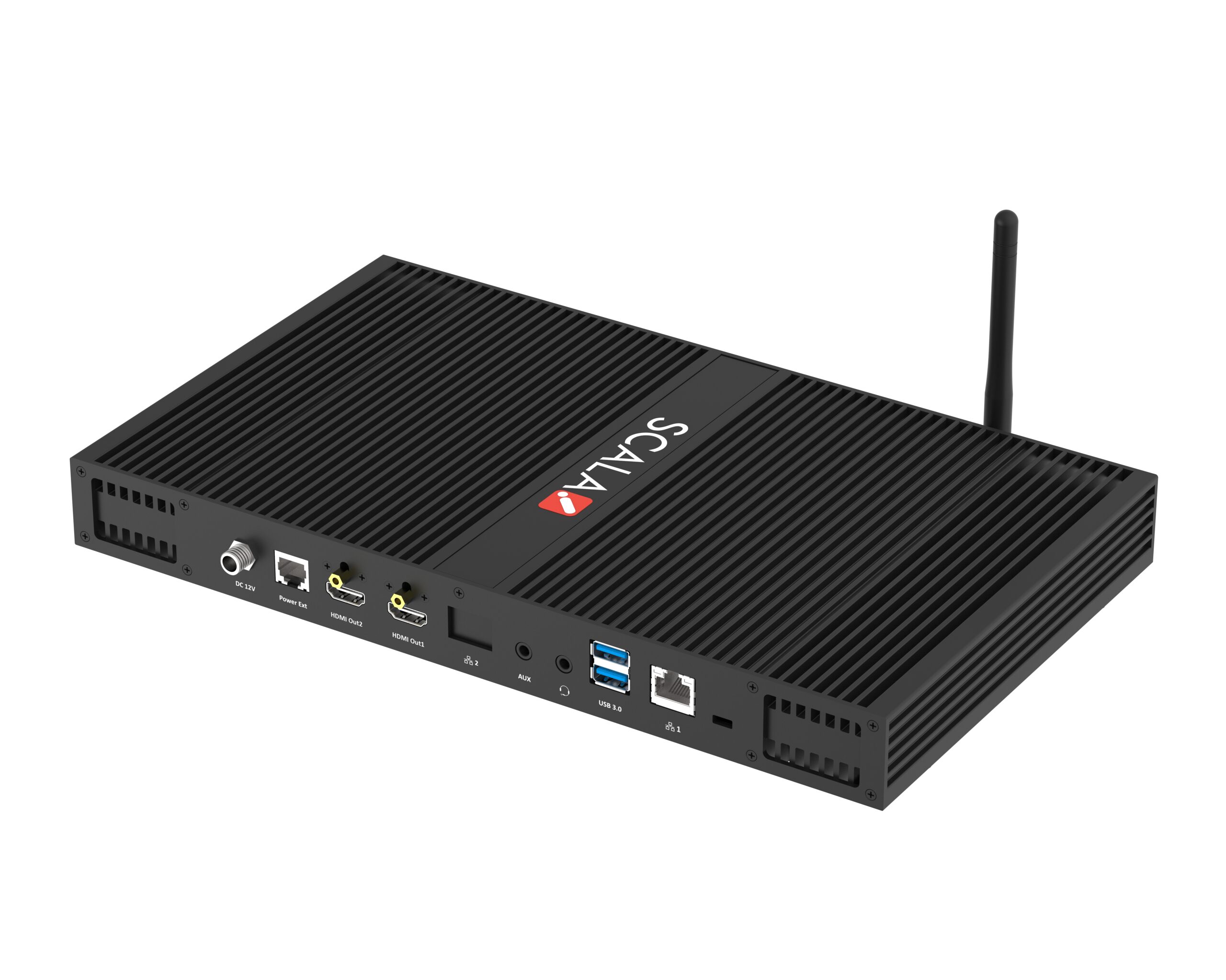

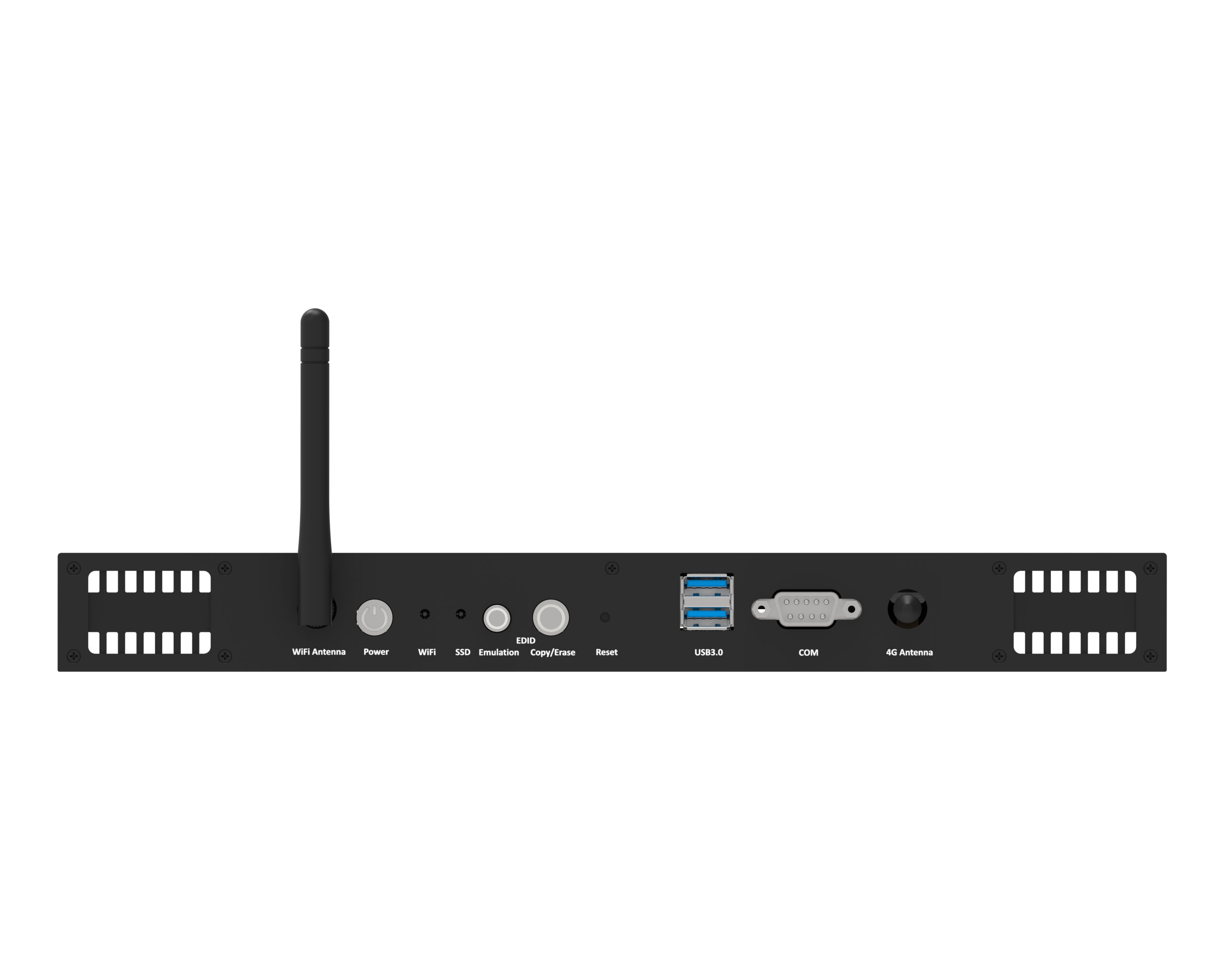

Entry-level dual 1080p output media player with full device management and support for multi-zone, HTML5 and ScalaScript content. Ideal for simple applications such as menu boards, schedules, directories, information boards and other displays with a lighter content load. With a slim form factor, an anodized aluminum housing and fanless design it fits into any digital signage location while staying protected from dirt and dust. Additional I/O features include Gigabit Ethernet, four USB 3.0 ports and RJ11 remote power switch.

  • Windows 10 IoT Enterprise LTSB (“Windows 10 Embedded”)
  • CPU: Intel Celeron N3160 1.60GHz (quad-core)
  • Graphics: Intel HD Graphics 400
  • Video: Two HDMI 1.4b port with cable retention screw, Display Continuity button
  • Memory: 8GB DDR3L RAM (dual-channel)
  • Storage: 64GB M.2 SSD storage
  • Network: One gigabit Ethernet port, wireless 802.11 a/b/g/n/ac, two external antennas
  • USB: Four USB 3.0 Type A ports
  • Serial: One DB9 port
  • Housing: Anodized aluminum, fanless
  • Dimensions: 192 mm x 164 mm x 28 mm
  • Weight: 1060 g
  • Operating Temp: 0°C to +40°C
  • Storage Temp: -55°C to +75°C
  • Mean Time Between Failures (MTBF): > 50,000 hours

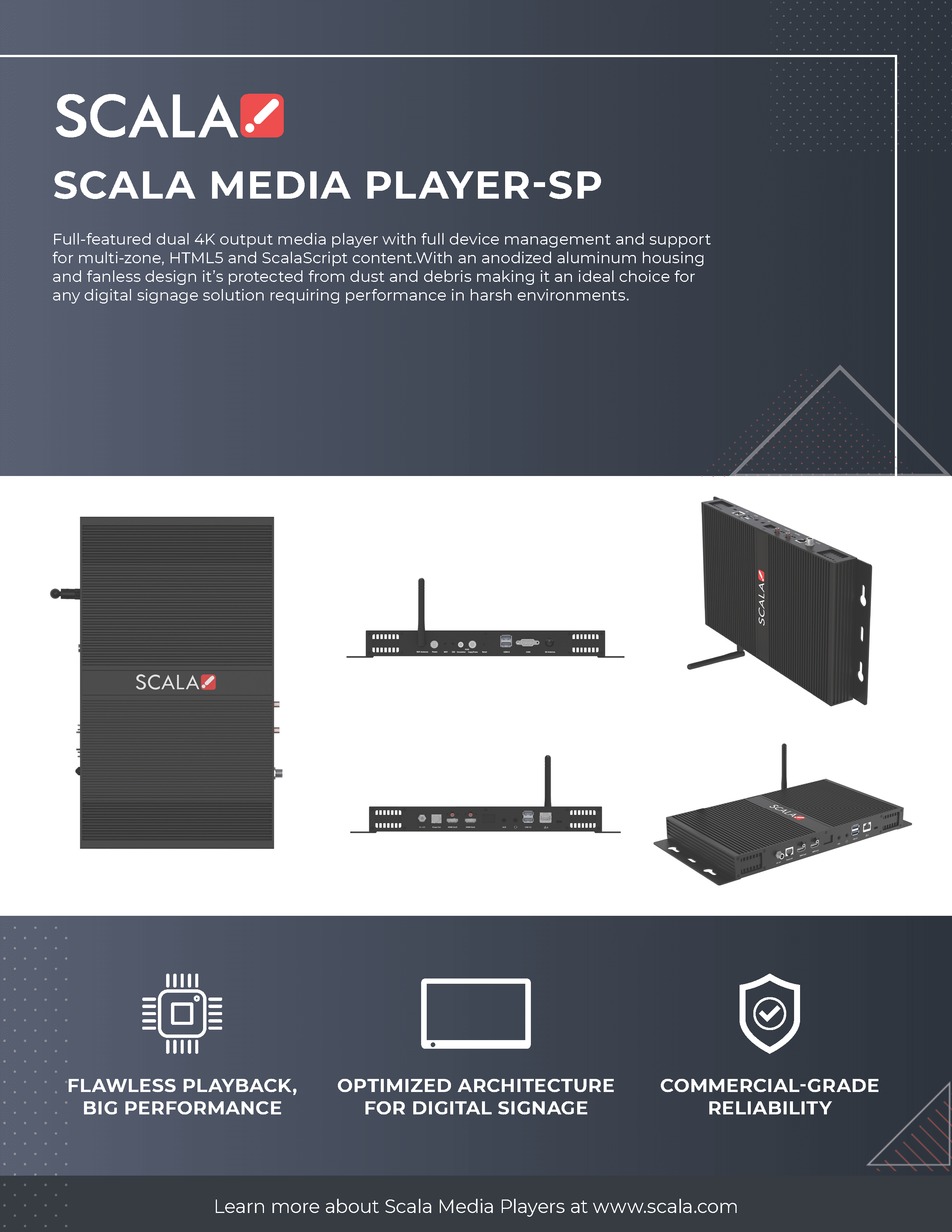

Scala Media Player-SP Spec Sheet Thumbnail

Scala Media Player-SP Spec Sheet

Download
