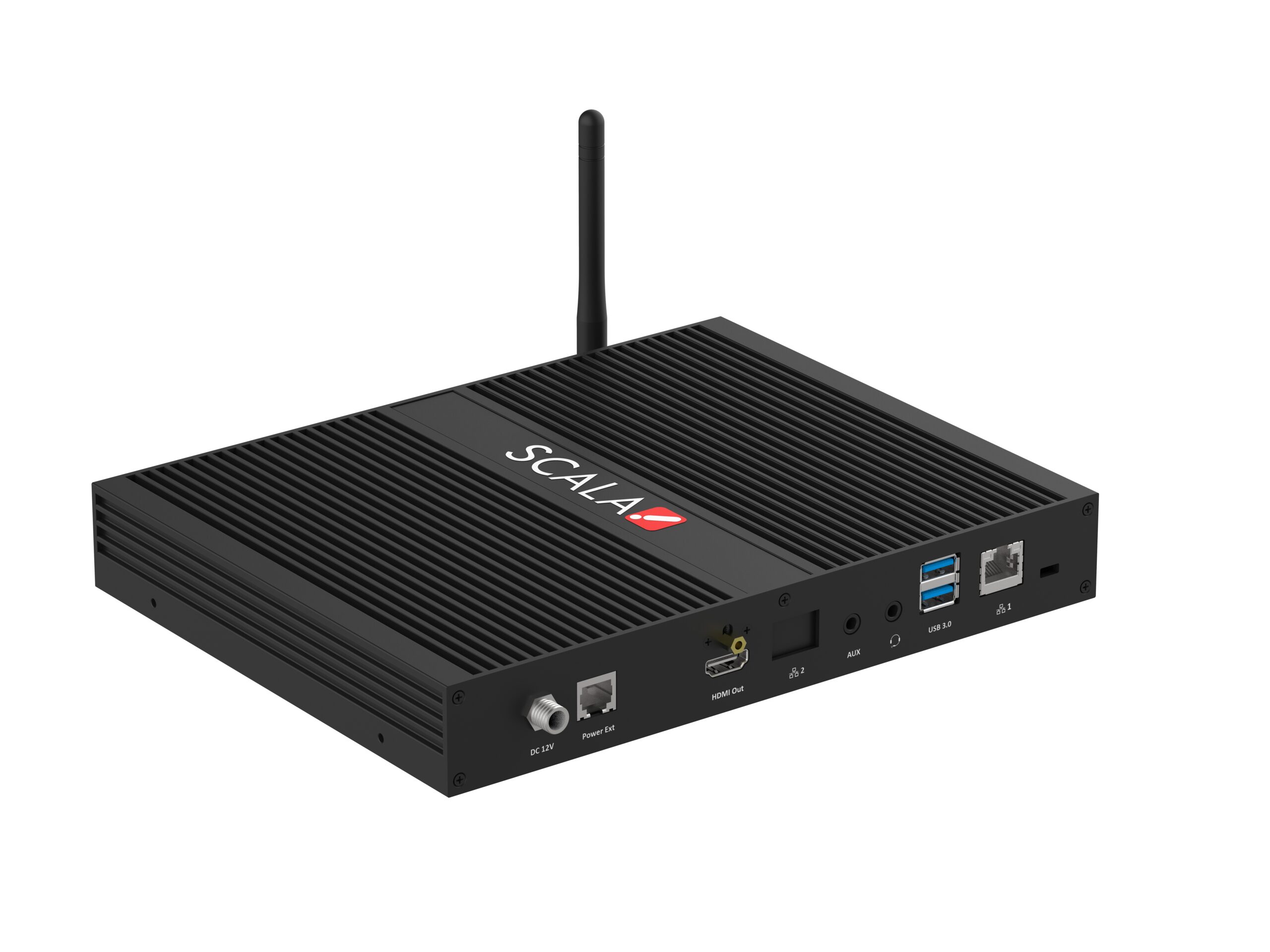

Full-featured single 4K output media player with full device management and support for multi-zone, HTML5 and ScalaScript content. With an anodized aluminum housing and fanless design it’s protected from dust and debris making it an ideal choice for any digital signage solution requiring performance in harsh environments. Additional I/O features include Gigabit Ethernet, four USB 3.0 ports and RJ11 remote power switch.

  • Supported OS: Windows 10 IoT Enterprise LTSC (“Windows 10 Embedded”) or Linux
  • CPU: AMD Ryzen Embedded R1305G
  • Graphics: Radeon Vega3
  • Video: One HDMI 2.0 output
  • Memory: 4GB DDR4-2400 SO-DIMM, single channel
  • Storage: 128GB NVME SSD (M.2 mPCIe 2280), Max 2TB
  • Network: Gigabit Ethernet RJ45
    2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac)
    Bluetooth v4.0 with BLE
    Optional: 2nd Ethernet NIC, 4G LTE
  • USB: Four USB 3.0 Type A ports
  • Serial: One DB9 Male

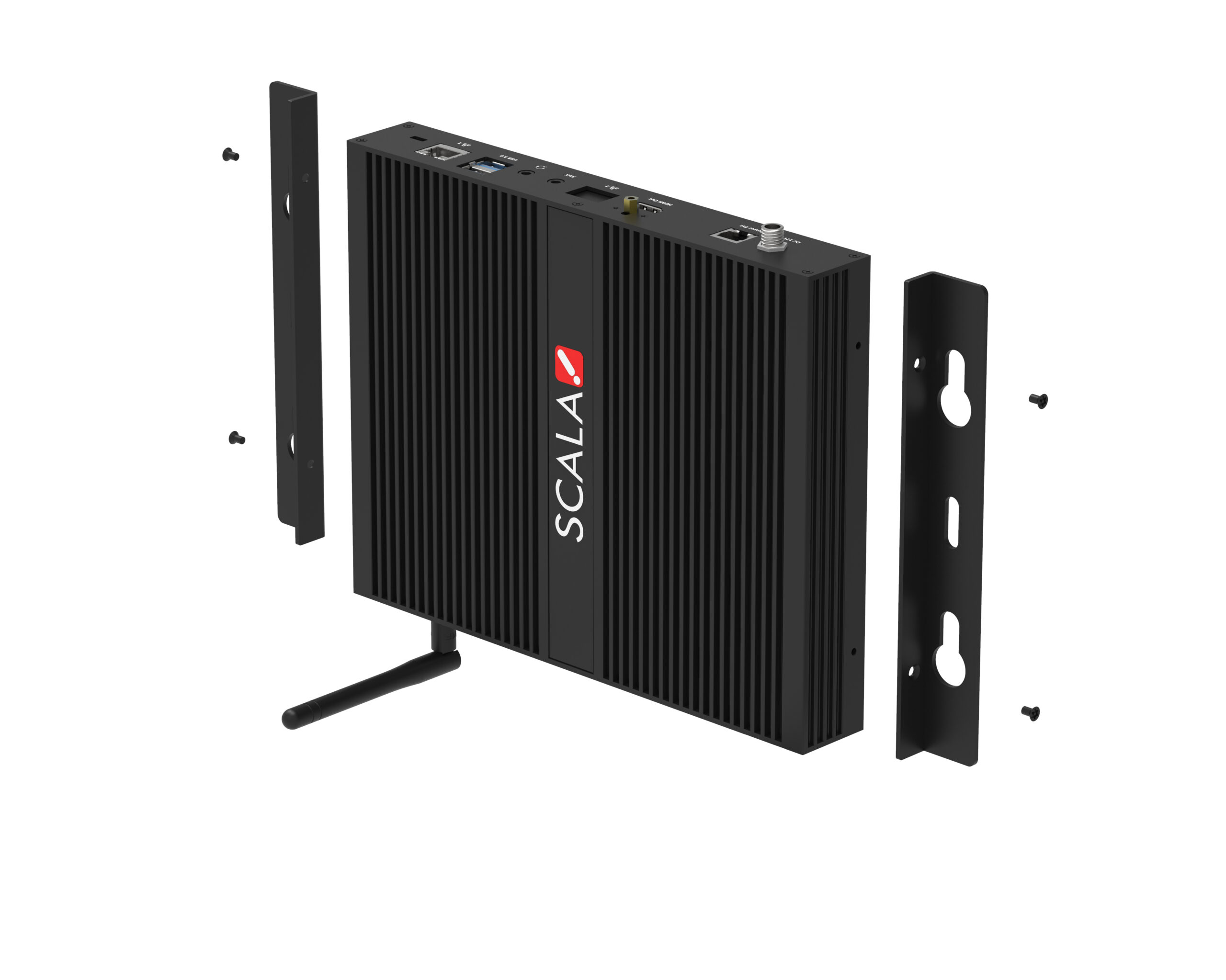

  • Housing: Anodized aluminum, fanless, K slot for secure mounting
  • Dimensions: 230mm (W) x 180mm (D) x 33mm (H) | 9” (W) x 7” (D) x 1.3” (H)
  • Weight: 2.2 kgs | 4.85 lbs
  • Operating Temp: 0°C to +40°C | 32°F to +104°F
  • Storage Temp: -15°C to +65°C | 5°F to +149°F

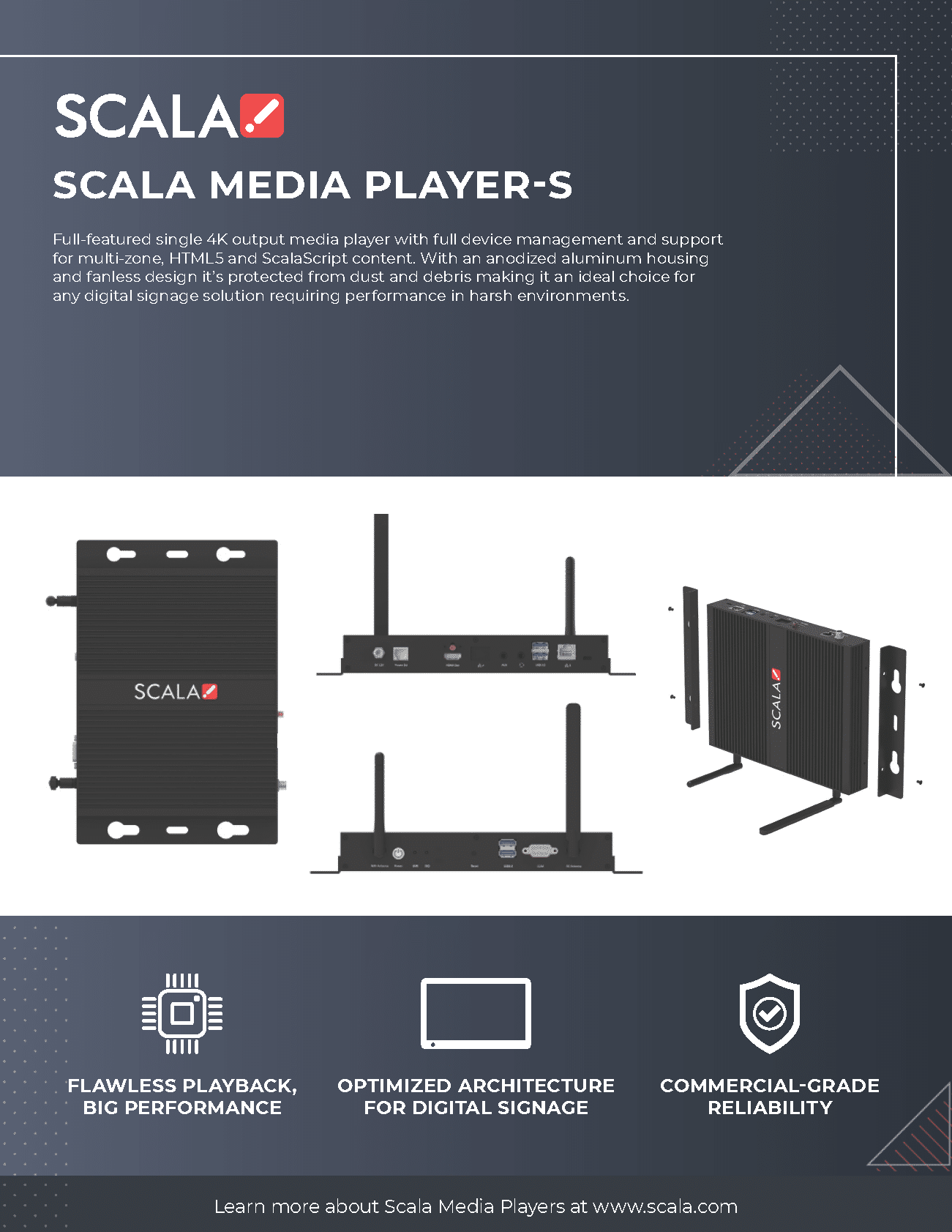

Scala Media Player S Spec Sheet Thumbnail

Scala Media Player S Spec Sheet
