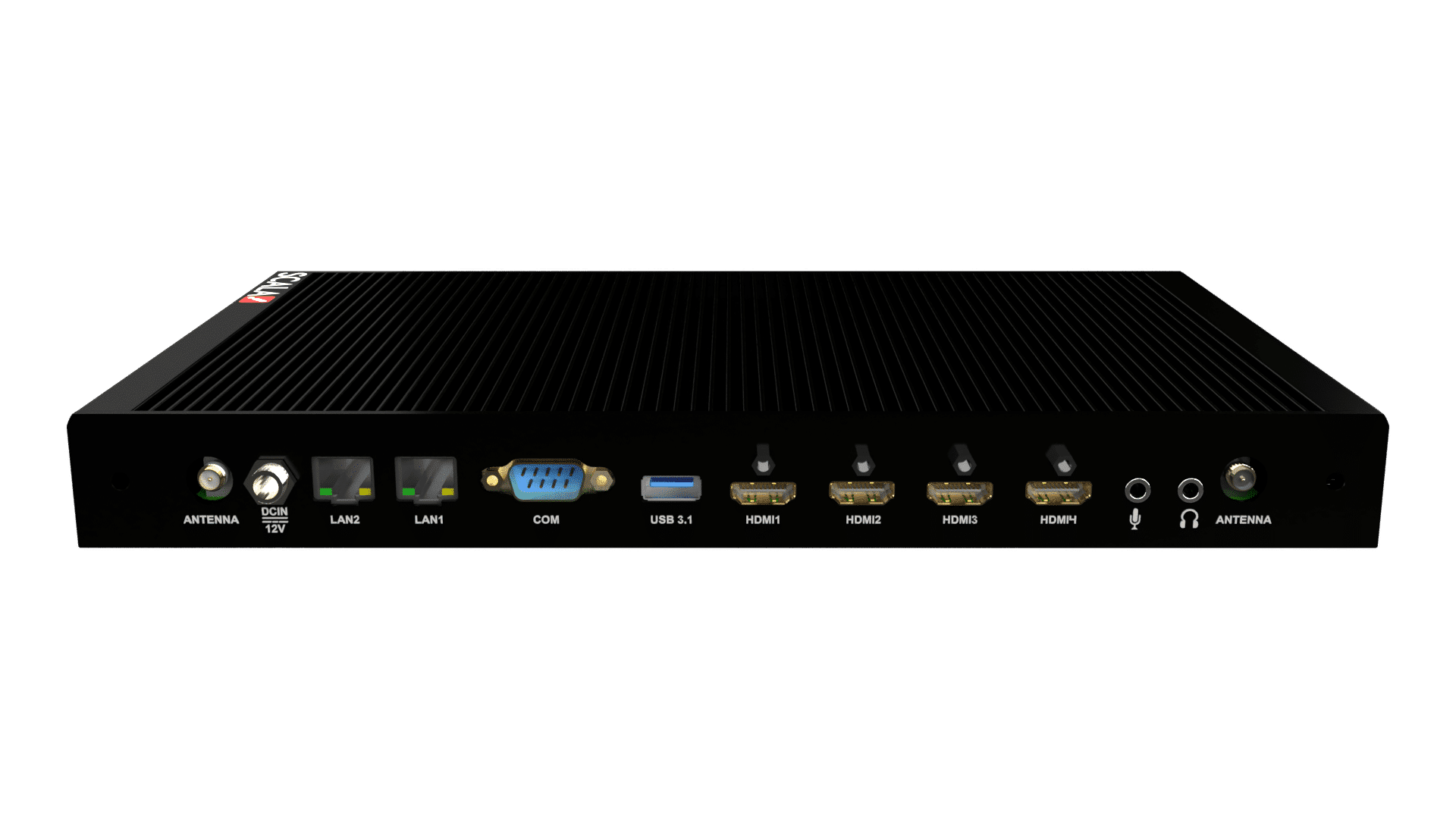

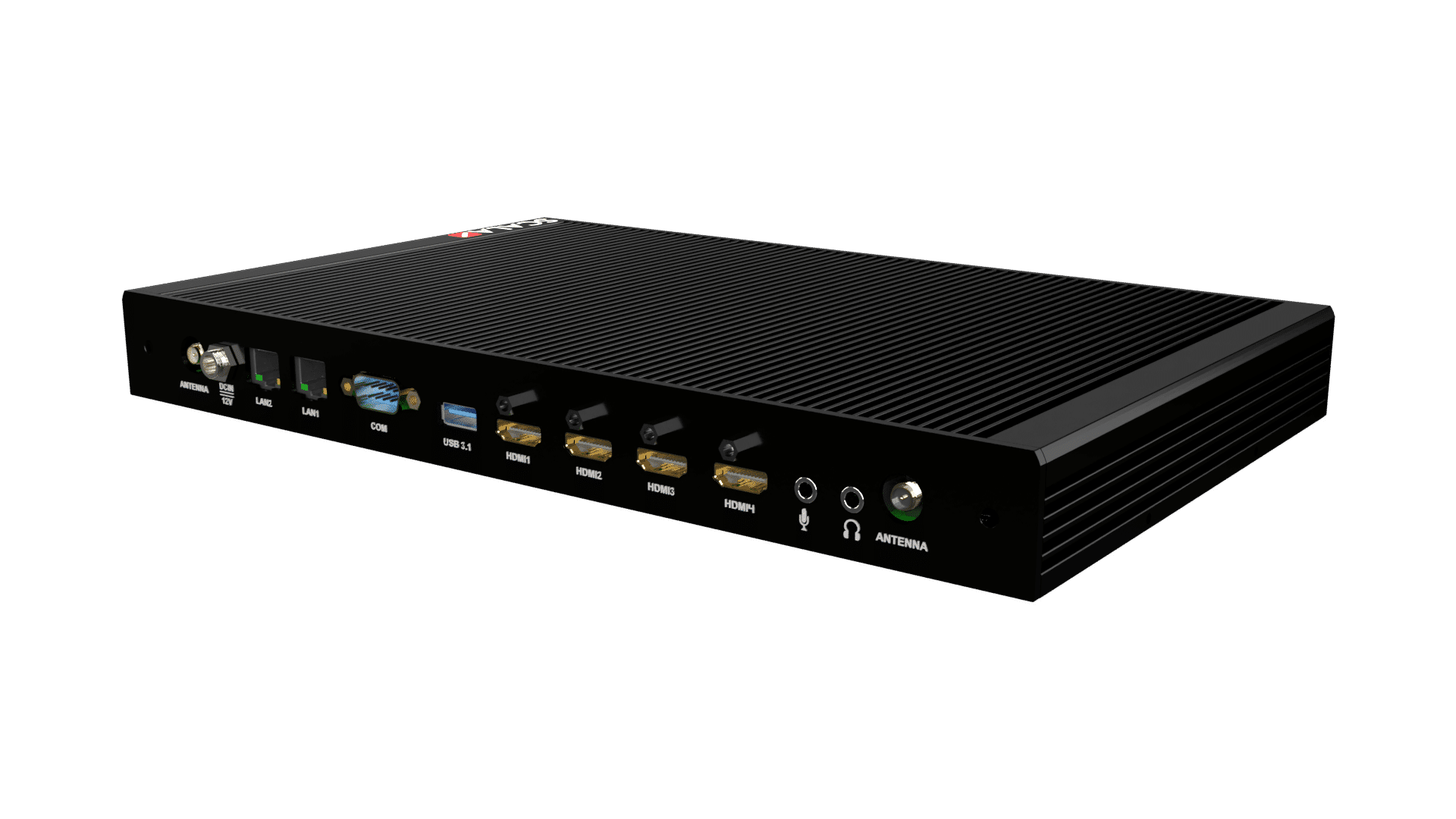

The Scala Media Player-Q is a quad HD output digital media player that delivers enterprise performance and seamless playback of HD content. Designed and developed by Scala’s engineering team, the media player works seamlessly with Scala’s digital signage software, matching powerful, stable performance with turnkey simplicity.

An optimized architecture ensures high quality performance throughout its entire lifetime. System hardening minimizes vulnerabilities and delivers robust system security. The media player’s fanless design keeps it protected from dust and debris, ideal for any digital signage solution in any environment.

  • Supported OS: Windows 10 IoT Enterprise LTSC (Linux support coming Q4 2020)
  • Processor: AMD Ryzen V1202B Dual-core 2.3 GHz/3.2 GHz
  • Graphics: Integrated AMD Radeon Vega 3
  • Memory: 8 GB DDR4 SO-DIMM RAM (dual-channel)
  • Storage: 128 GB M.2 SATA SSD
  • Power: DC 12 V with screw lock
  • Network: Dual Gigabit Ethernet port, wireless IEEE 802.11 a/b/g/n/ac Wi-Fi,Bluetooth 4.2
  • Antenna: Two 2.4 GHz / 5 GHz dual-band antenna
  • HDMI: Four HDMI 2.0 ports with screw lock
  • Audio: One 3.5 mm
  • USB: Two USB 3.1 Type A ports, One USB 3.0 Type A port
  • Serial: One DB9 Male
  • Enclosure: Anodized aluminum case, fanless
  • Dimensions: 300 x 186 x 32 mm / 11.8 x 7.3 x 1.3 in
  • Weight: 2145 g / 4.7 lb
  • Operating Temp: -10° - 45° C / 14° - 113° F
  • Storage Temp: -55° - 75° C / -67° - 167° F
  • Humidity: 5 - 95% Non-condensing
