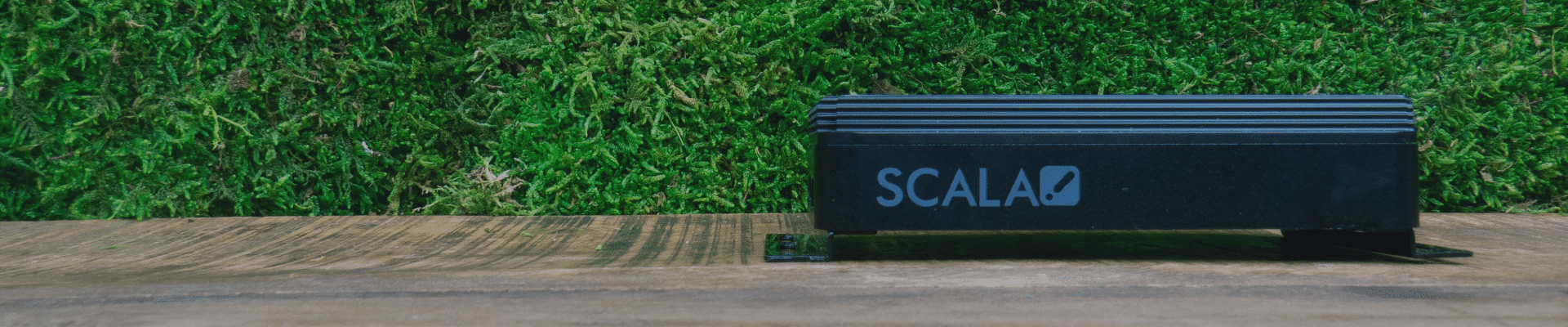

Scala Media Player-L

The affordable entry-level “Lite” single 1080p output media player solution with basic device monitoring and support for single-zone and HTML5 content

An affordable entry-level digital media player that delivers stability and reliability in an ultra-compact design. With an anodized aluminum housing and fanless design the Scala Media Player–L easily fits into any digital signage location while staying protected from dirt, dust and any other particles that could compromise performance.

Scala’s feature based licensing provides the flexibility to expand the Scala Media Player–L’s supported features to include full device monitoring and support for playback of ScalaScript content.

  • Windows 10 IoT Enterprise LTSB (“Windows 10 Embedded”)
  • CPU: Intel Atom x5-Z8350 1.44GHz (quad-core)
  • Graphics: Intel HD Graphics 400
  • Video: One HDMI 1.4b port
  • Memory: 2GB LPDDR3 RAM (single-channel)
  • Storage: 64GB eMMC SSD storage
  • Network: One 10/100Mbps Ethernet port, 802.11 a/b/g/n/ac Wi-Fi with external antenna
  • USB: One USB 3.0 port, two USB 2.0 ports
  • Housing: Anodized aluminum, fanless
  • Dimensions: 115.1mm x 65.6mm x 25.3mm excluding mounting plate
  • Weight: 280g
  • Operating Temp: 0°C to +40°C
  • Storage Temp: -55°C to +75°C
  • Mean Time Between Failures (MTBF): > 50,000 hours
