Designed and Built by Digital Signage Experts

LINQ all-in-one intelligent tablets combine powerful performance with a slim form factor to deliver powerful interactive digital experiences. Durable and designed to withstand continuous commercial use, the all-in-one tablets are ideal for fixed applications such as digital signage, self-service kiosks and interactive guided selling solutions. Deliver highly personalized experiences in any active, high volume environment. Equipped with a front-facing camera and integrated sensors, the screens enable consumer detection and identify demographics, allowing you to tailor digital experiences to your current audience. An integrated, robust content management platform rounds out the LINQ full solution, providing media scheduling and application, content and device management across diverse locations.

designed image
selling point image
shild image

Commercial-grade reliability

Operate in rugged and demanding environments without interruption

shild image

all-in-one intelligent tablets

Combines powerful performance computing with a slim design

shild image

Integrated hardware and software

Manage content updates and devices across diverse locations

Full Range of Sizes

device image

11.6"

device image

15.6"

device image

18.5"

device image

21.5"

device image

32"

device image

43"

device image

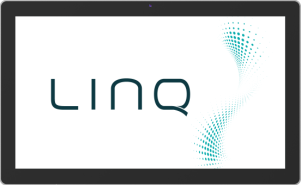

55"

Elevated Customer
Experience

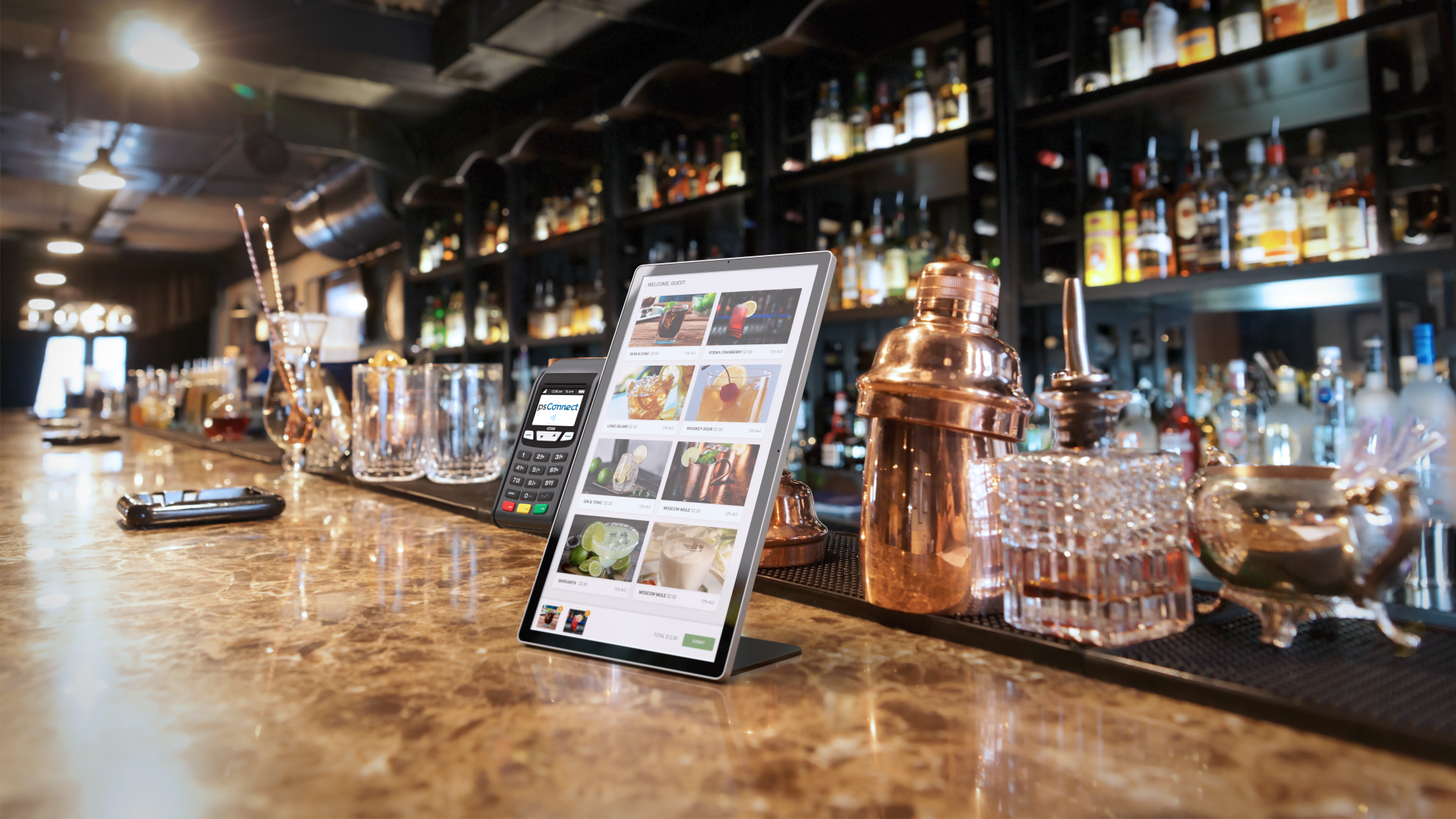

LINQ all-in-one tablets deliver digital signage content to elevate the customer experience across a wide variety of use cases in retail, quick service restaurants, banking, transportation, grocery, and additional key digital signage markets.

  • Self-service or check-in kiosks

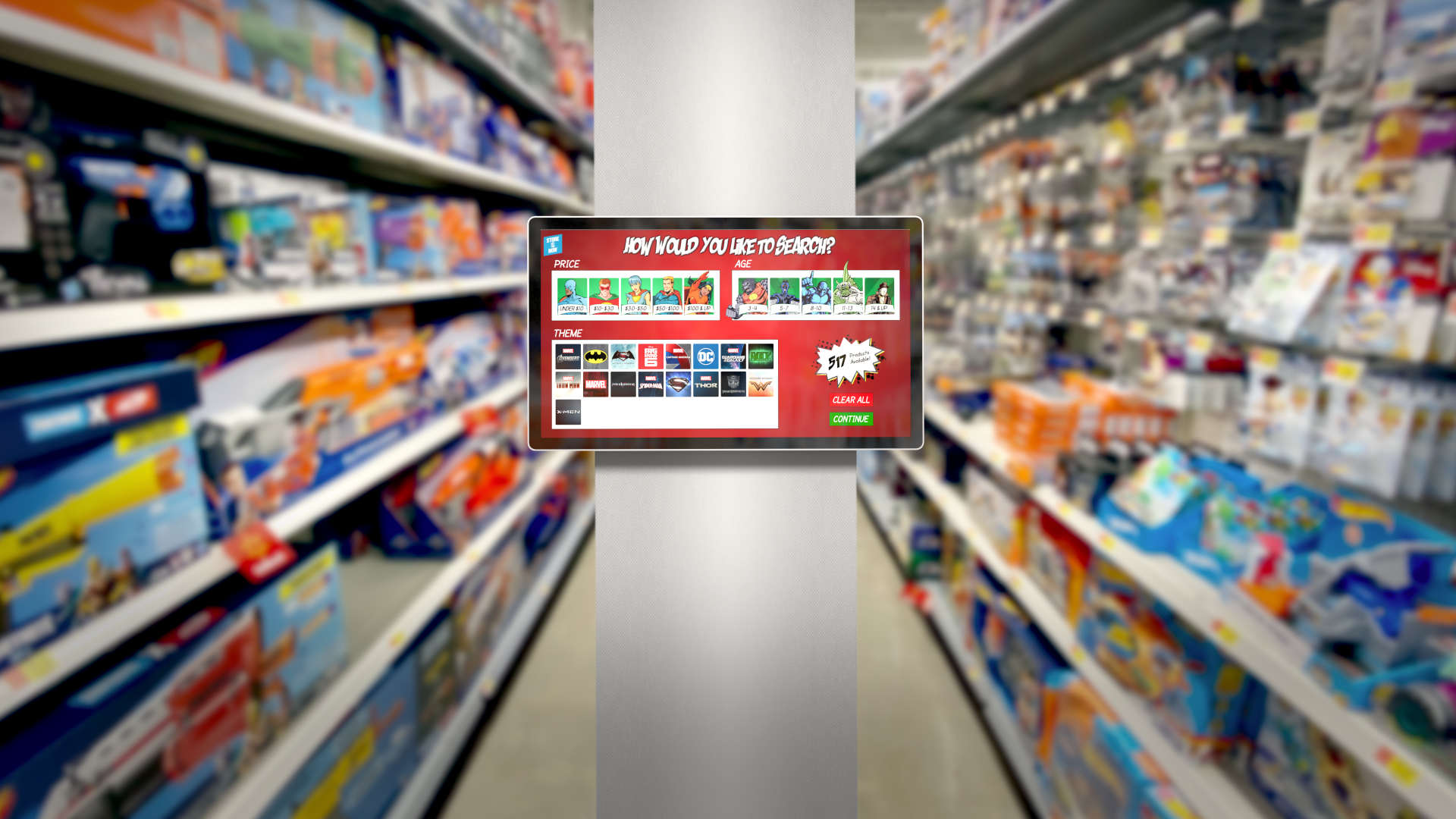

  • Endless aisle

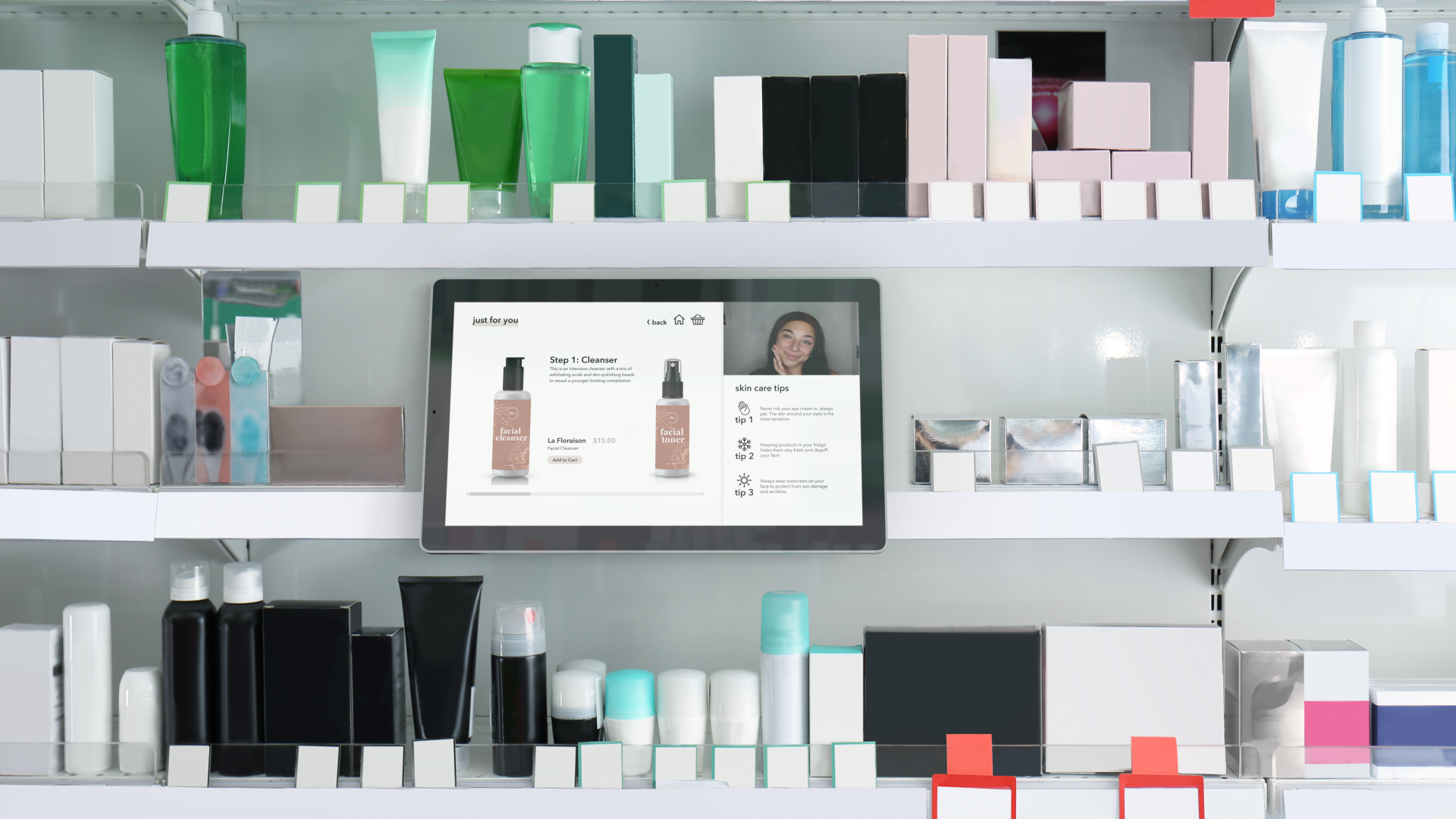

  • In-store product finder
  • Price checker

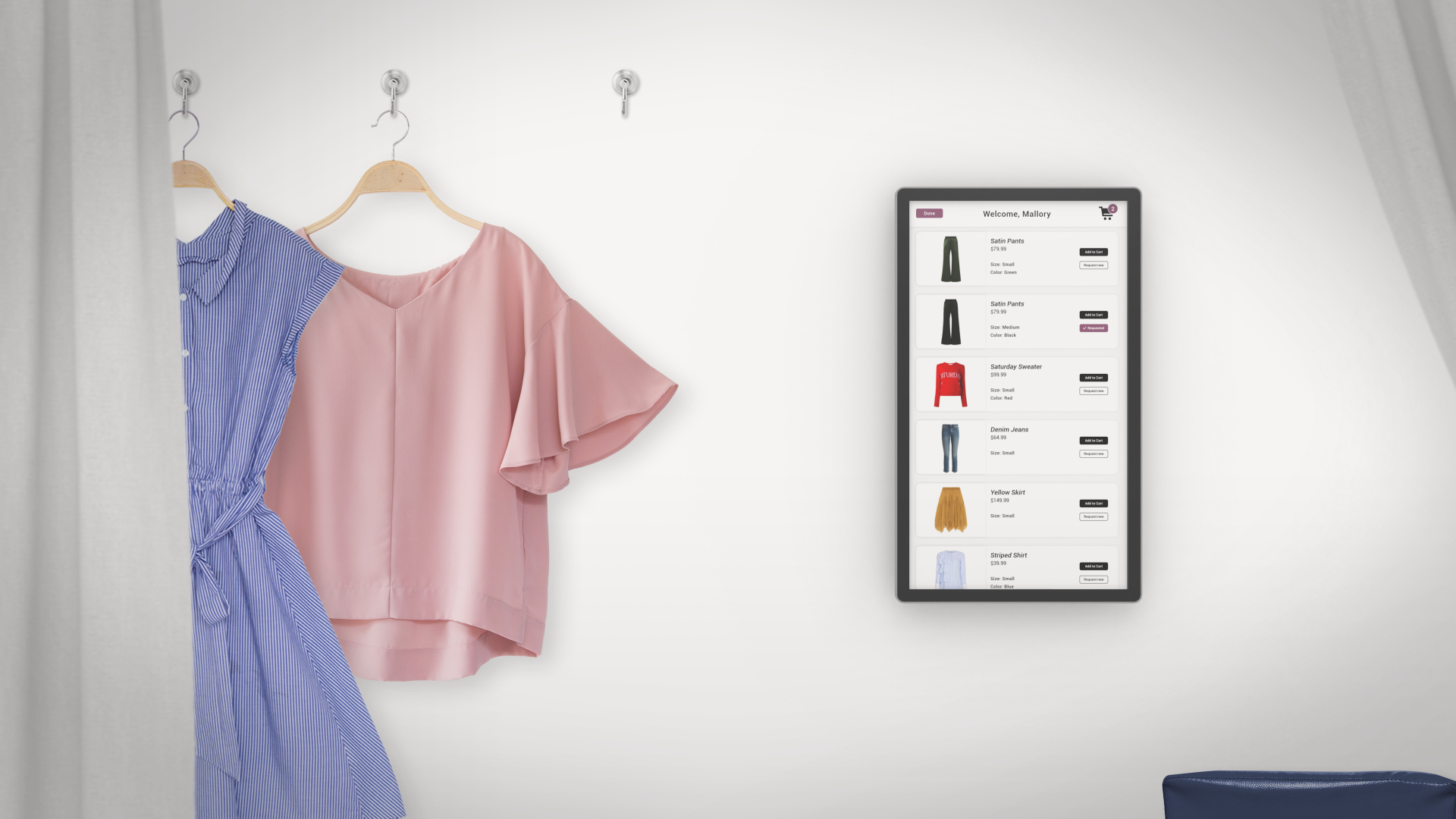

  • Interactive fitting room assistant

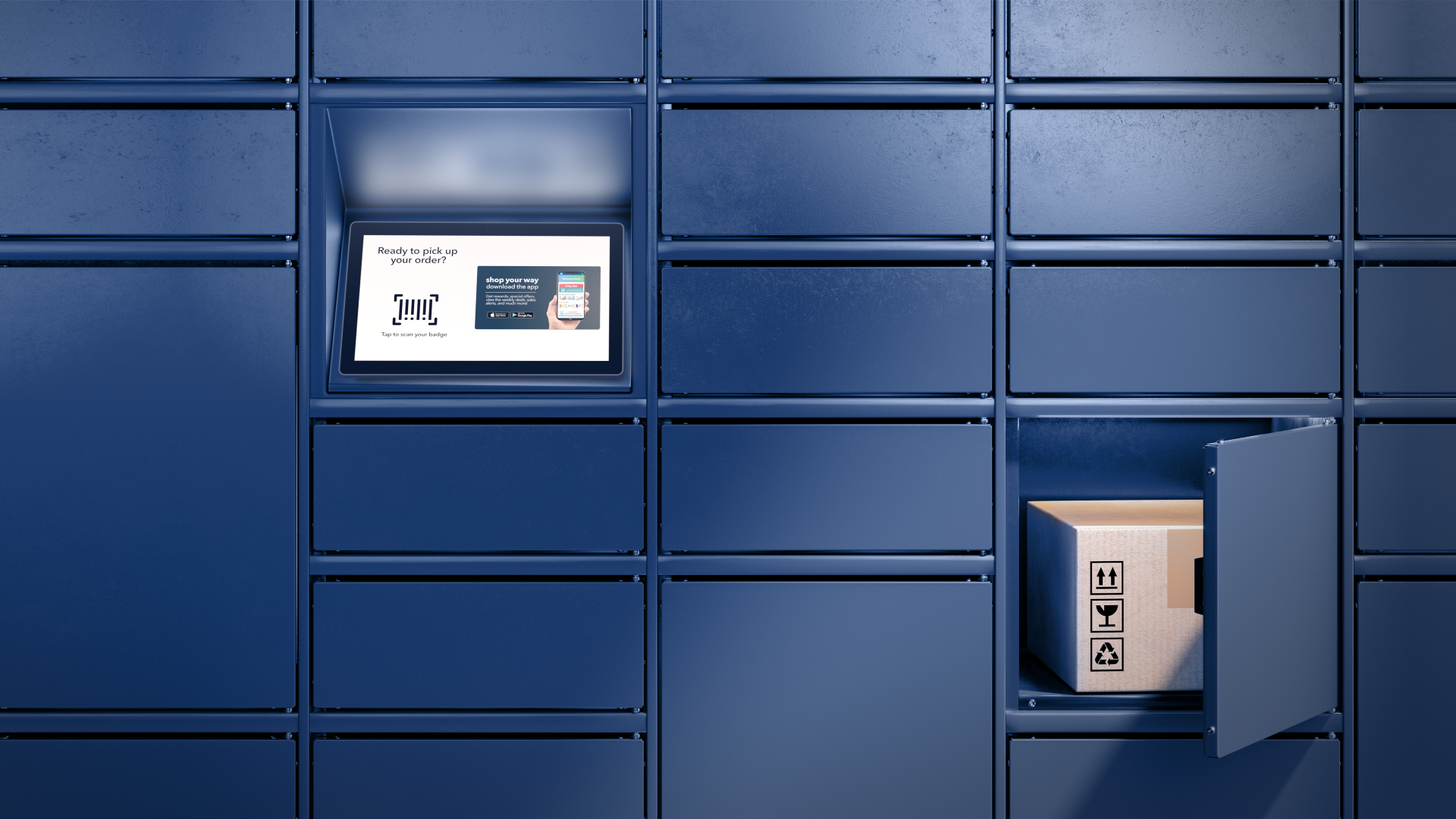

  • Customer service or pick-up queue

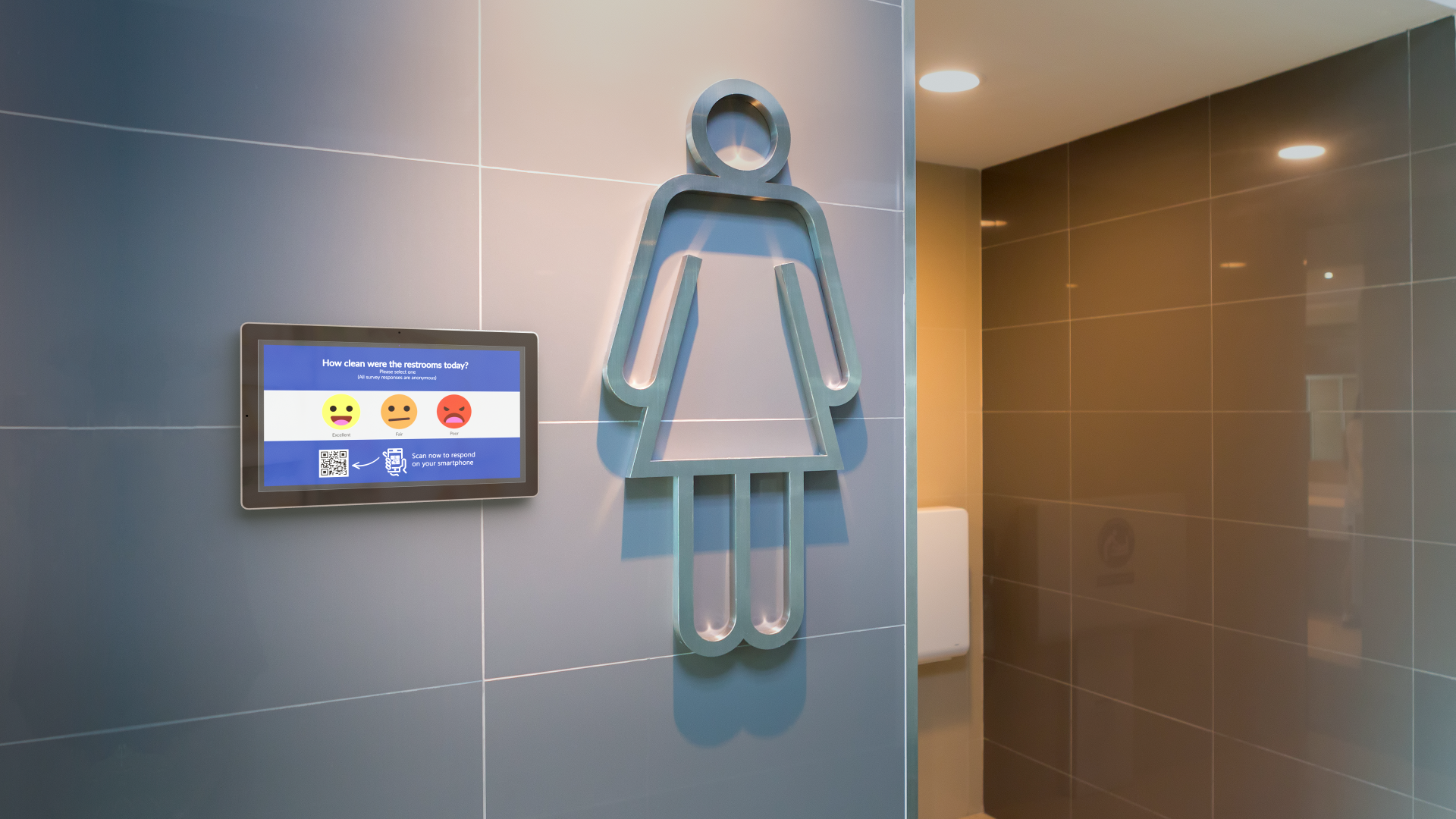

  • Customer survey

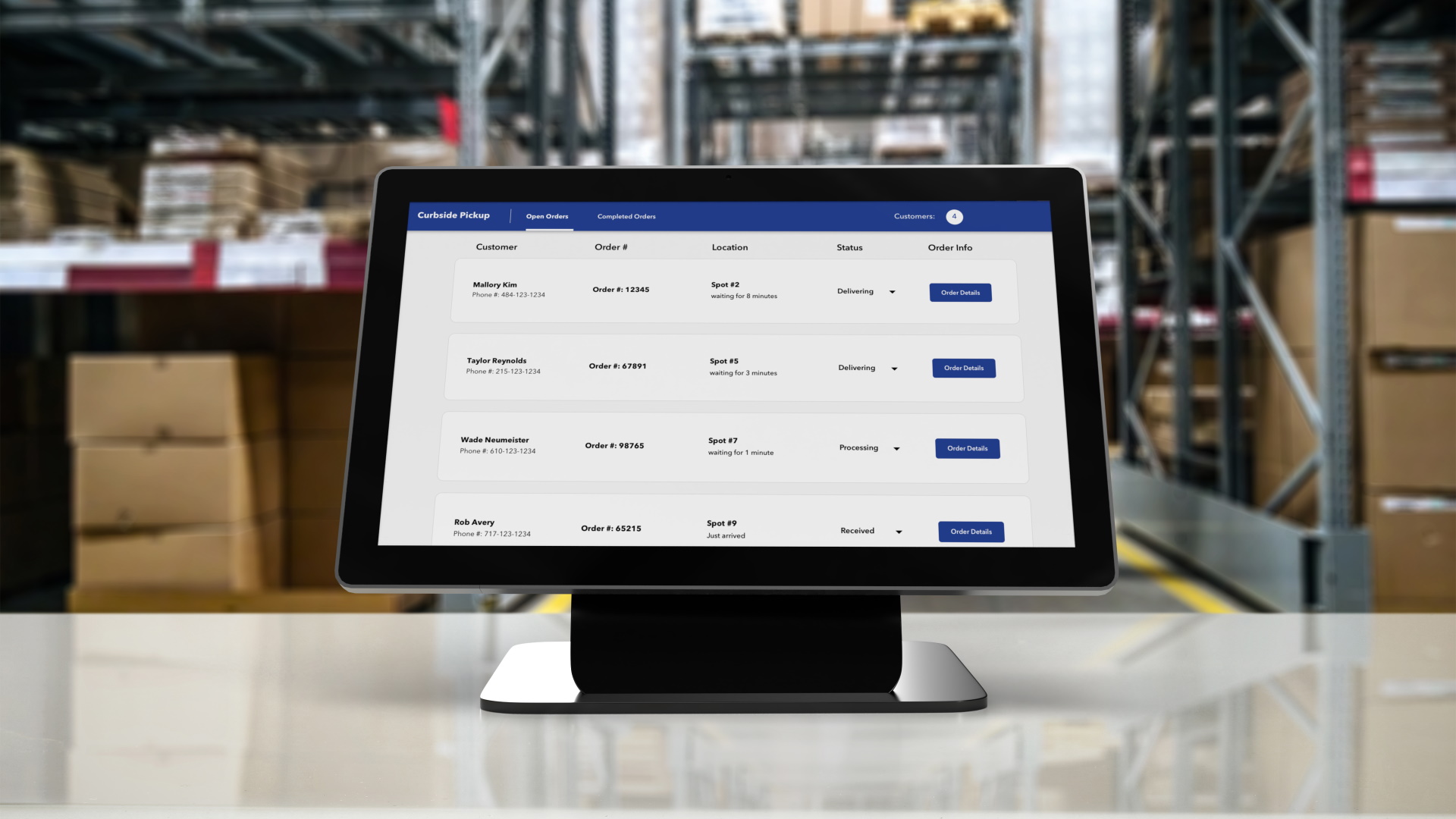

  • Back of house or kitchen operations
  • Wayfinding
Elevate Your Customer Experience
slider image
slider image
slider image
slider image
slider image
slider image
slider image

Engineered for Reliable Digital Signage at Scale

information image

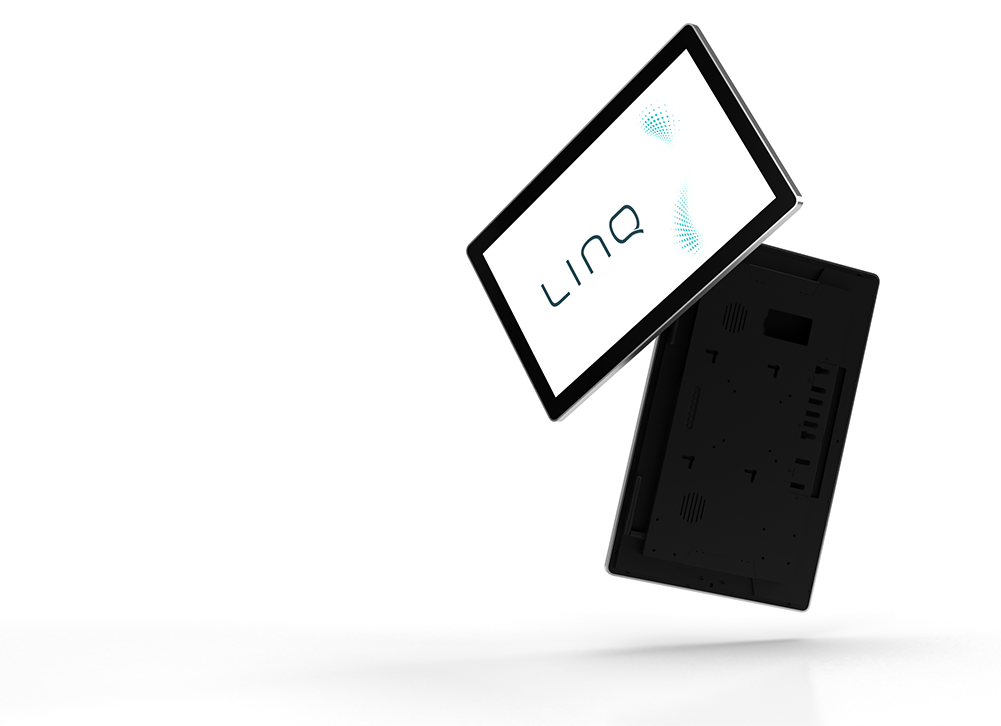

LINQ tablets have a purpose-built proprietary design specifically tailored for digital signage applications. Featuring the high performance six-core Rockchip RK3399, the commercial tablets are engineered for continuous 24/7 commercial use, and use DC-AC power, eliminating the need for battery power. For sizes 18.5” or smaller, Power over Ethernet (POE) is standard, eliminating the need for a power drop, providing cost savings and flexibility for installation.

Flexible Configuration to Fit your Needs

configuration image

LINQ tablets are available in multiple configuration, functionality and size
options to suit your digital signage experience needs

configuration image

LINQ Pro Touch series features 10-point capacitive touch to engage the consumer with fully interactive experiences.

configuration image

LINQ Pro Vue series are non-touch for passive experiences that inform and educate consumers.

service image

CMS

Compatible with content management platforms across the STRATACACHE family of companies, including Scala, X2O Media and Real Digital Media.

service image

Memory/Storage

Standard configuration offers 2 GB of RAM and 32 GB of storage. A plus configuration offers 4 GB of RAM and 64 GB of storage with the option to upgrade to 128 GB of storage.

service image

Network

Features Ethernet, Wi-Fi and Bluetooth connectivity with the option to also add 4G LTE connectivity.

Accessories

A variety of input and output options provide the versatility to connect multiple accessories and peripherals to customize and expand your solution for integrating functionality such as payment processing, barcode scanning, and Near-Field Communication (NFC).

accessories image
accossries image
11.6"

Specifications



Type
Standard
Plus
Model Description
LINQ 11.6” Pro Touch Series
Power
Input: 100-240V~50/60Hz AC, Output: 12V DC Screw Lock, Power over Ethernet IEEE 802.3at (25.5W) on Eth0
Operating System
Android 8.1 / Linux 4.4 Kernel
Memory
2 GB Dual-channel DDR3-1600 (800 MHz)
4 GB Dual-channel DDR3-1600 (800 MHz)
CPU Six-core Rockchip RK3399
ARM 64-bit processor, up to 2.0 GHz
Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
GPU
ARM Mali-T860 MP4 Quad-core GPU
Storage
32 GB high-speed eMMC 5.1
64 GB high-speed eMMC 5.1
Display Panel
11.6" IPS, 1920 x 1080, 400 Nits Brightness, 85° Viewing Angle
Touch Panel
10-point capacitive touch panel
HDMI
One HDMI 2.0 output
Auxilary Audio
One 3.5 mm, One Toslink S/PDIF
Speakers
Two 2W Speakers
Network
Gigabit Ethernet RJ45, 2.4/5 GHz Dual-band WiFi (IEEE 802.11a/b/g/n/ac), Bluetooth 4.0, 4G LTE (optional)
Antenna
One WiFi/Bluetooth, One 4G LTE
USB
Five USB 2.0 (One service)
Front Camera
8 Megapixel
Other I/O
Buttons: Home/Recovery, Vol +/-, Brightness +/-, Reset, Custom (*) SD Card, 4G module and SIM card bay
Mount
VESA 75 x 75 mm
Dimensions
296.3 x 179.3 x 30.5 mm / 11.67 x 7.06 x 1.20 in
Net Weight
1.67 kgs / 3.68 lbs
Enclosure
Metal casing with aluminum frame
Storage Temperature
-15° - 65° C / 5° - 149° F
Working Temperature
-0° - 50° C / 32° - 122° F
Storage / Working Humidity
10 - 90% Non-condensing
Warranty*
1 year included, extended warranty available
Optional Upgrades**
4G LTE: Quectel EG25-G LTE Module with internal SIM card slot
*Extended warranties must be added at time of purchase **4G Module and SIM card not included

Resources

LINQ 11.6" Pro Touch

Click to download the file
